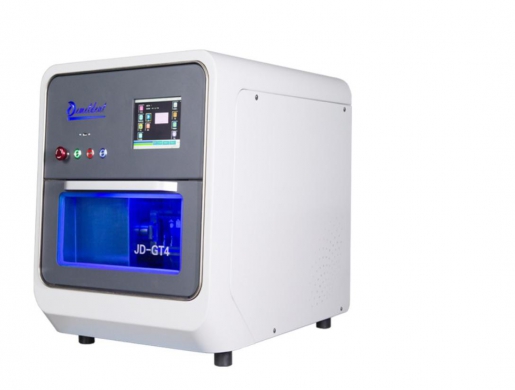

LK-B09 Dental Lab Zirconia Milling Machine

  • Shiriki kwenye mtandao wa kijamii


Model
JD-GT4

Axis
4

Milling mode Dry/Wet
Millable material Zirconia, Wax, PMMA, PEEK, Resin, Premilled abutment, Glass ceramic
Product type Crown, Bridge, Inlay/onlay, Veneer, Glass ceramic, Premilled abutment
Max spindle speed 60000 RPM/min
Spindle power 1.5 KW
Spindle cooling Water cooling
Rotation range A: ±360°
Number of tool housed 3
Tool shank diameter Φ4 mm
Tool change and check Fully Automatic
Compatible compressed air 0.7 MPa
Loadable workpiece shape Disk/Fixture
Disk diameter: 98mm

Premilled abutment: Single

Glass ceramic: PIN type

Input Voltage Single-phase 220V 50Hz/60Hz
Average milling time(dental crown) Zirconia: 9-18 min
Wax: 3-6 min

Resin: 12 min

Premilled abutment: 22- 28 min

Glass ceramic: 25-38 min

External dimensions 524*800*610 mm
Weight 108 KG
Control command set NC code
Positioning accuracy
0.003 mm
